High Precision Energy Meter Test Bench

8 positions three phase and 8 positions single phase
  • 8 positions three phase and 8 positions single phase
  • 10 positions both side three phase energy meter test bench
  • 6 positions three phase energy meter testing bench
  • 12 positions three phase and 12 positions single phase
  • 16 positions three phase energy meter test bench
Model No.︰SY8330
Brand Name︰SONGYANG
Country of Origin︰China
Minimum Order︰1 pc
Share on:

 Total 17 Related Items
Prev12345Next

Product Description

1. Introduction

SY8330 Series Three Phase Energy Auto-calibration System is a new generation, high precision, multifunctional energy meter calibration equipment. It uses the international’s most advanced technology and components available in 90 decade. It can be widely used to calibrate different kind of single phase energy meter both channel & three phase energy meter or multifunction power meter.

2. Function

  • Warm up
  • Basic error test
  • Standard deviation (S) in error test
  • Repeatable error test
  • Latent test (no load test)/automatic/manual
  • Initial test (starting test)/automatic/manual
  • Voltage influence testing
  • Voltage unbalance testing
  • Individual current reversal testing
  • Phase rotation testing
  • Frequency influence testing
  • Deviation test for 24 hours
  • Harmonic testing
  • Phase circuit testing with close link (channel of single phase meter)
  • Neutral circuit testing with close link (channel of single phase meter)
  • Neutral missing testing (channel of single phase meter)
  • Current by pass testing option for three phase meter
  • Neutral current testing option for three phase meter
  • Single phase meter balance condition testing with closed link

3. Technical Specification

3.1.    Accuracy class:

            0.1 class (close-link calibration, the range of current: 0.05A-120A)

            0.01/0.02/0.05 class (ordinary calibration)

3.2.      Standard power testing equipment:

            Three phase multi-functions precision power reference meter

            Accuracy class:0.01/0.02/0.05class

3.3.      Isolated current transformer equipment:

            Insulate current inductance

           Accuracy class: 0.01 (PF=0.5C-1-0.5L, 0.01-120A)

           Primary current: 3x0.01-120A secondary current: 3x0.01-120A

           Output power: 60VA (MAX, 120A)

3.4.   Output voltage:

           3x60/120/240/480V; range: 0-120%

           Fine adjustment: 0.01% of range

           Accuracy of setting amplitude: 0.02%/0.05% (when connect reference standard)

           Stability: 50ppm/h (with integration time of 60seconds)

           Capacity: 1000VA/600VA/350VA/200VA

3.5.     Output current:

           3×1mA-120A

           Fine adjustment: 0.01% of range, 0.1mA (min)

           Accuracy of setting amplitude: 0.02%/0.05% (when connect reference standard)

           Stability: 50ppm/h (with integration time of 60seconds)

           Capacity: 2000VA/1500VA/1000VA/500VA

3.6.      Range of phase: 0-3600 fine adjustment: 0.010

3.7.      Frequency: 40Hz-70Hz; fine adjustment: 0.01Hz

3.8.      Waveform distortion coefficient: voltage/ current < 0.5%

3.9.      Harmonic wave output:

            2-21 sub-harmonic wave             contents<=40%

            3, 5, 7 sub-harmonic wave coupling,   total content<=40%

            Phase angle control (odd sub-harmonic wave)

            Wave group control (sub-harmonic wave)

3.10.    Starting current output: 1mA (min), accuracy: 5%, starting power: accuracy 5%

3.11.    Numbers of calibrated energy meter: 8 (16 on requested)

3.12.    Input power: 3x220V/240V (Y) +- 10%, 50/60Hz; max. consumption: 3x3000VA



[Details]





Application︰Used for the test of three phase CT/PT and whole current energy meter via clink-link with a accuracy class below 0.2, Number of meter position : 3-24
Product Image

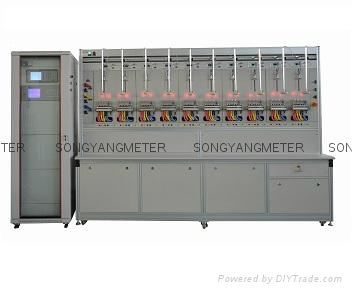

8 positions three phase and 8 positions single phase
